LK-AMPD-S Kiekie Kiekie Amplified Microwave InGaAs Photodetector
- Kiʻekiʻe ，Wide Bandwidth
- Hoʻohui ʻia ʻo Bias-T
- ʻO/E Hybrid Integrated
- Loaʻa kiʻekiʻe, haʻahaʻa leo, Broadband
- Hoʻopaʻa Hermetically, Hoʻohui SMA
- Haʻahaʻa Pōʻeleʻele ， kiʻekiʻe hōʻailona-a-noise ratio.
- Kumu Liʻiliʻi.
Product Description
ʻO LK-AMPD-S kahi hybrid o kahi photodiode InGaAs a me kahi mea hoʻonui haʻahaʻa haʻahaʻa, i hoʻolālā ʻia no ka pane ākea ākea mai 1000 a i 1650nm a hāʻawi i kahi loaʻa 15 dB RF. Hāʻawi ia i ka hana kiʻekiʻe me nā bandwidth o 12GHz a me 18GHz, a hoʻohana ʻia e kahi lako + 5V.
Ua kūpono kēia module me ka fiber 9/125μm mode hoʻokahi maʻamau a loaʻa iā ia kahi mea hoʻohui SMA me kahi pāʻani impedance 50 ohm.
Ua hoʻopaʻa ʻia ʻo LK-AMPD-S me ka hermetically no ka mālama ʻana i ke kaiapuni a me kahi hoʻolālā māmā, me ka nui o lalo o 23 grams. Hoʻopili ia me ka Restriction of Hazardous Substances (RoHS) Directive 2.0, e hōʻoia ana i ka hoʻomau ʻana o ke kaiapuni a me ka mālama ʻana i nā kūlana palekana.
Nā Kūlana Kiʻi
| Kūlana Kiʻekiʻe Kiʻekiʻe | ||||
|---|---|---|---|---|
| aiao | ʻO Sym | Kāne | Rating | Mokuna |
| Laulā mahana mālama | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Lahi wela o ka pahu hana | TC | 25 | -40 ～ +85 | ℃ |
| Voltage Bias | VR | +5 | +5 ～ +9 | V |
| Mana Hookomo Optical | Pin | 0 | 10 + | dBm |
| ʻO ka mana Optical Burn-out | PB | - | 13 + | dBm |
| Ka wela hoʻoheheʻe alakaʻi | Tp | 280（10s） | 330（10s） | ℃ |
| ʻAno Uila / Optical (TC = 22 ± 3 ℃ ) | ||||||
|---|---|---|---|---|---|---|
| aiao | ʻO Sym | ʻAno Hoʻokolohua | Nā Waiwai Kūlana | Mokuna | ||
| Laulā hawewe | λ | - | 1000 ~ 1650 | nm | ||
| Laulā Frequency | - | - | X - Bana | Ku - Band | - | |
| ʻO ka Bandwidth hōʻailona liʻiliʻi | f-3dB | TC = 22 ± 3 ℃ | 0. 3 ~ 12 | 0. 8 ~ 19.5 | GHz | |
| ʻIvitylelo pane | Re | VR =+5V, Pin =10mW | λ = 1310 nm | ≥ 0.8 | ≥ 0.85 | A / W |
| λ = 1550 nm | ≥ 0.85 | ≥ 0.8 | ||||
| Amplitude Flatness | A | TC =-45～+85 ℃ | ≤ ± 2 | dB | ||
| Ka Mana Optical Saturation | Ps | VR =+ 5 V, λ = 1550 nm AC Modulated |
10 | dBm | ||
| Loaʻa ka hōʻailona RF (Maʻamau) | G | - | 15 ± 1 | dB | ||
| Saturation RF Puka Mana | Paku | - | +3 | dBm | ||
| Huakaʻi VSWR | ʻO VSWR | - | ≤ 2 | - | ||
| Hoʻonui i ka hopena | RL | - | 50 | Ω | ||
● Nā ʻĀpana pane maʻamau

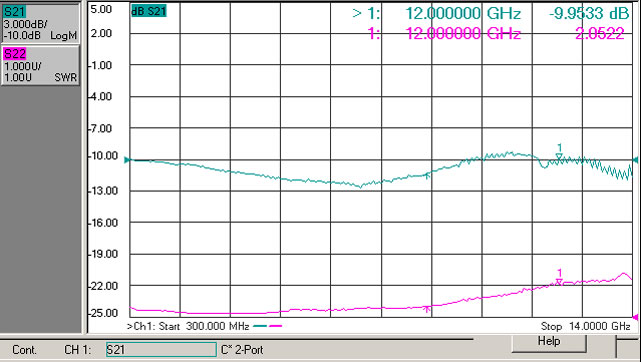

（ Fig. 1 X - Pānaʻi kiʻi kiʻi kiʻi kiʻi kiʻi pinepine pane）

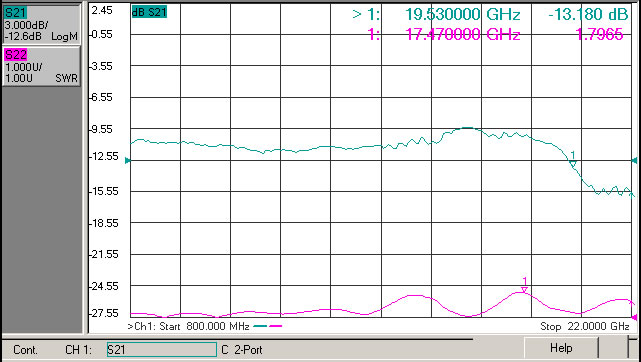

（ Fig. 2 Ku - Pānaʻi kiʻi kiʻi kiʻi kiʻi kiʻi pinepine pane）

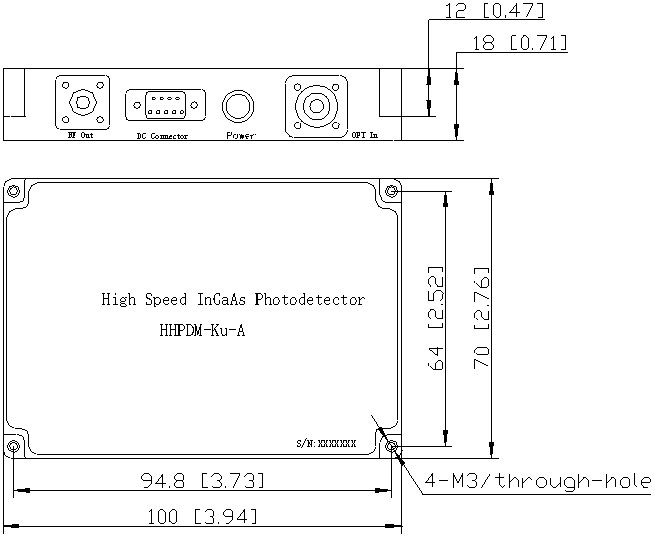

●Ana a me nā Pin ( Unit: mm[ iniha] )
Hoʻohui RF: SMA
●kauoha Information
Pepa 1:
| Code | Loaʻa ka hōʻailona RF | hoʻopuka |
| S | 15 dB | ʻAno maʻamau a waena |
Pepa 2:
| Code | Analog Bandwidth |
| X | 0. 3 ~ 12 GHz |
| Ku | 0. 8 ~ 19.5 GHz |
Pepa 3:
| Code | hūliliʻAno | hoʻopuka |
| N | ʻAʻohe mea hoʻohui | Hoʻokahi-mode 9 / 125 μm fiber pigtail |
| A | FC / APC | |
| P | FC / PC |
● Hoʻomalu
ʻAʻole liʻiliʻi ma lalo o 20 mm ka radius bending fiber no ka pale ʻana i ka fiber i hōʻino ʻia.
E hōʻoia i ka maʻemaʻe o ka ʻaoʻao pili fiber ma mua o ka hoʻopili ʻana iā ia i ka opto-circuit.
Pono ka pale ESD kūpono i ka mālama ʻana, ka lawe ʻana a me ka hoʻohana ʻana.
Hiki ke hoʻopilikino ʻia kā mākou mau photodetectors maʻamau i loko o nā modula！
noi
Hoʻoponopono ʻike Radar
Ke kaua uila
Ana Antenna
Nā Kūkākūkā Fiber Optic
Ka palekana a me ka nānā
