LK-D-SS-12-T Series Optical Hoʻopaneʻe Line & Optical Simulator
- ʻO ka bandwidth i 12GHz
- Kiʻekiʻe dynamic laulā
- Hoʻohana wela ākea
- Haʻahaʻa amplitude pane
- Hoʻopaneʻe manawa maʻamau
Product Description
Ke hilinaʻi nei i ka ʻenehana photonics microwave, ʻo ka LK-D-SS-12-T series o nā laina hoʻopaneʻe optical a me nā simulators optical e hāʻawi i ka hana maikaʻi loa a hoʻohana nui ʻia i ka hoʻāʻo radar, ka hana hōʻailona, nā antennas array phased, simulation antenna a me ka hoʻāʻo ʻana i ka leo. Hiki i nā mea hana ke hana maikaʻi ma waena o ka L/S/C/X holoʻokoʻa me ka poho hoʻokomo haʻahaʻa, kiʻekiʻe dynamic range, ka hoʻokaʻawale electromagnetic ikaika, a me ka hiki ke mālama i nā hōʻailona hoʻouna triple hiki ʻole ke ana. ʻO kēia mau hiʻohiʻona he mea kūpono ia no ka hana kiʻekiʻe o ka optical a me ka microwave.
Nā Kūlana Kiʻi
ʻAno Uila / Optical
| aiao | Nā Waiwai Kūlana | Mokuna | hoʻopuka | ||
| Min | KOLOHE | Max | |||
| alapine (frequency) pilikino | 1 | - | 12 | GHz | |
| Amplitude Flatness | - | ± 2 | ± 2.5 | dB | |
| Ka Hoʻopau | 0.01 | - | 150 | us | i hoʻopilikino ' |
| Hoʻopaneʻe pololei | -5‰ | - | +5‰ | - | |
| hookomo Loss | 0 | 20 | 30 | dB | i hoʻopilikino ' |
| Hoʻokomo VSWR | - | 1.8 | 2 | - | |
| Huakaʻi VSWR | - | 1.8 | 2 | - | |
| ʻAʻohe pono | - | 50 | - | Ω | |
| Hoʻokomo 1 dB Compression | - | 13 + | 17 + | dBm | |
| Laki hōʻole hōʻailona hoʻopunipuni | 60 | - | - | dBc | |
| Kiʻi walaʻau | - | 45 | 55 | dB | 5us, 25 ℃ |
| Hana Mahana | -55 | - | 85 + | ℃ | E nana i ka ike kauoha |
| Ka pale Kūʻai | -55 | - | 85 + | ℃ | |
| Hoʻopaneʻe Pili vs | - | - | 7 | ppm/℃ | |
| Hoʻokomo lilo vs | - | 2 | 4 | % / ℃ | |
ʻO ka wehewehe a me ka lako mana
| Pin | 1, 2 | 3, 4, 5 | 6, 7 | 8, 9 |
| anakahi uila | NC | GND | + 12V | NC |
| Ka helu o nā lāʻoi aku | - | - | 0.3 | - |
| Max Nānā | 1 |

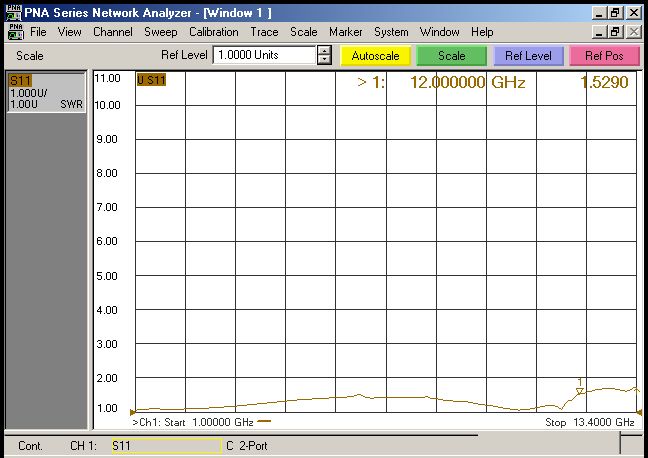

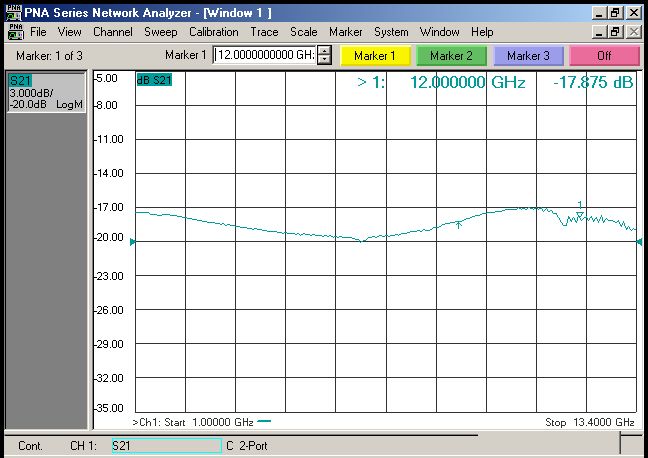

Nā ʻĀpana pane maʻamau（25℃）
Ana a me nā Pin ( Unit: mm[ʻīniha])
Hoʻohui RF: SMA-K (Hoʻopilikino)
Hoʻohui DC: DE-9PS (Hoʻopilikino)
| ProductʻAno | LK-D-SS-12-TG | hoʻopuka | |||||
| Hoʻopaneʻe manawa（mākou） | 8 | 20 | 35 | 50 | 60 | 80 | hae |
| X(mm）) | 37 | 50 | 65 | 80 | 90 | 110 | |
| ProductʻAno | LK-D-SS-12-TP | hoʻopuka | |||||
| Hoʻopaneʻe manawa（mākou） | 8 | 35 | 60 | 80 | 110 | 150 | kana olelo hoopomaikai |
| X(mm）) | 20 | 45 | 55 | 65 | 78 | 95 | |
kauoha Information
| ProductʻAno | pūʻolo helu | Nā Kūlana Kūlana | Hana Mahana | Ka pale Kūʻai |
| LK-D-SS-12-TGI | hae | Papa-hana | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-12-TGM | Kiʻekiʻe waena | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-12-TGS | Papa kūikawā | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ | |
| LK-D-SS-12-TPI | kana olelo hoopomaikai | Papa-hana | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-12-TPM | Kiʻekiʻe waena | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-12-TPS | Papa kūikawā | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ |
hoʻopuka：1. ʻO T ka palena kiʻekiʻe o ka laina hoʻopaneʻe kahi ʻāpana microsecond(us).
noi
ʻO ka hoʻāʻo ʻana o ka radar / calibration
Hāmeʻa hōʻailona
Kaua uila
ʻO nā ʻāpana antena i hoʻopaʻa ʻia
Antenna simulation
