LK-NY55D Mana Kiʻekiʻe DWDM DFB Laser
- Hoʻopili pololei o kēia manawa
- Kiʻekiʻe-Dynamic-Lahui
- Paepae Haʻahaʻa
- Mana Kaha kiʻekiʻe
- 14pin Butterfly Pūʻolo
- Ka Mahana Hana Hana: -20 a 70 ℃
- ʻO ke kūlana kiʻekiʻe
- A hiki i ka 100mw mana kiʻekiʻe
- Polarization Maitaining (PM) fiber
Product Description
Hoʻolālā ʻia ʻo LK-NY55D laser e lawelawe ma ke ʻano he mana kiʻekiʻe, hawewe-specific optical emitter, kahi kūpono no ka hoʻohui ʻana me kahi modulator waho i loko o nā ʻōnaehana CATV a me DWDM. He kūpono loa ia no nā noi e pili ana i ka super trunking a me ka hāʻawi ʻana. ʻO nā nalu i hāʻawi ʻia e kēia pūʻulu e pili ana i nā kūlana ITU Grid e pili ana i nā kikoʻī ʻelua a me nā kikoʻī.
Hele mai kēia pūʻulu me ka fiber polarization-maintaining (PM) a me nā hiʻohiʻona pili i kēia manawa (dc). Loaʻa iā ia kahi Thermoelectric Cooler (TEC) i hoʻohui ʻia, kahi thermistor no ka ʻike wela, a me kahi photodiode nānā no ka nānā ʻana i ka mana optical. Hoʻokomo ʻia ka module i loko o kahi pūʻolo butterfly 14-pin i kūpono me ka hoʻolālā pine OC-48, a ua hoʻokomo ʻia kahi mea hoʻokaʻawale optical i loko o ka pūʻolo ponoʻī.
Nā Kūlana Kiʻi
| ʻAno Uila / Optical (TC = 25 ± 3 ℃ ) | ||||||
|---|---|---|---|---|---|---|
| aiao | ʻO Sym | ano | Min | Kāne | Max | Nā Units |
| 'O ka pinepine | f | - | 0.01 | - | 1 | ghz |
| Ka laulā (-3dB, I=200mA) | S21 | - | 1 | ghz | ||
| Mana hoʻopuka optical | P | 40 mW mana, T = Tset, IF =IOP50 mW mana, T = Tset, IF =IOP63 mW mana, T = Tset, IF =IOP80 mW mana, T = Tset, IF =IOP100 mW mana, T = Tset, IF =IOP |
40 50 63 80 100 |
- | - | mW |
| ʻO kēia manawa | ʻIth | BOL | - | - | 40 | mA |
| Ka hana ʻĀina | ʻIop | 40 mW mana, BOL 50 mW mana, BOL 63 mW mana, BOL 80 mW mana, BOL 100 mW mana, BOL |
- - - |
- - - |
280 350 450 580 650 |
mA |
| Anakahi uila | Vop | BOL, IF =IOP | - | - | 2.5 | V |
| Pōleo nalu | λ | T = Tset, IF =IOP | - | 1550 | - | nm |
| ʻO ka walaʻau ikaika | rhine | - | - | - | -160 | dB / Hz |
| Lakiō kaohi ʻaoʻao ʻaoʻao | SMSR | 30 | - | - | dB | |
| Polarization extinction ratio | PER | IF =IOP | 17 | - | - | dB |
| Holo ka nalu ma luna o TC huahelu | ∆λTOP | T = TOP | - | - | 40 | pm |
| ʻO ke kūpaʻa wela | ʻO Rth | TOP=25 ℃ | 9.5 | 10 | 10.5 | KΩ |
| Thermistor Temp. Coefficients | TCTH | TOP=25 ℃ | - | -4.4 | - | % / ° C |
| TEC i kēia manawa | Itec | -20 ℃<TC<70 | -1.0 | - | 1.5 | A |
| Volta TEC | Vtec | -20 ℃<TC<70 | -2.0 | - | 3.0 | V |
| RF impedance | ʻO Zin | 40 MHz - 1002 MHz | 1 | - | 6 | Ω |
| Nānā PD i kēia manawa | Im | IF = IOP, VMPD = -5 V | 0.1 | - | 2.5 | mA |
| Mākaʻikaʻi iā PD ʻO kēia manawa ʻeleʻele (PD) | Id | IOP = 0 mA, VMPD = -5 V | - | - | 0.2 | uA |
| Kūlana Kiʻekiʻe Kiʻekiʻe | |||||
|---|---|---|---|---|---|
| aiao | ʻO Sym | ano | Min. | Max. | Mokuna |
| Laser i mua o ka mana DC | If | - | - | 750 | mA |
| Laser hoʻohuli uila | V | - | - | 2 | V |
| Ka Voltage Hoʻohuli Photodiode | VR | - | - | 10 | V |
| hana mehana | E | - | -20 | 70 + | ° C |
| papaa mehana | Ts | - | -40 | 85 + | ° C |
| ESD | - | HBM: R = 1500 Ω, C = 100 pF | -500 | 500 | V |
'Ōlelo Aʻo: Loaʻa nā ʻāpana laser āpau mai nā wafers i hōʻoia ʻia me ka hoʻohana ʻana i ka nui o nā mea pono e loaʻa i kahi hua kūpono no ka puhi ʻana.

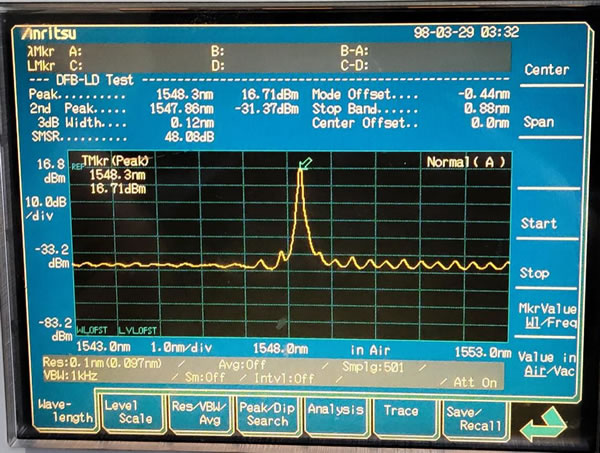

● ʻIkepili maʻamau

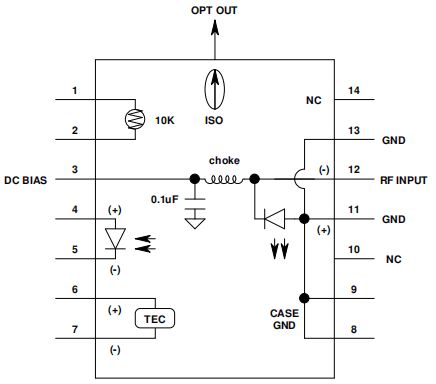

● Papahana uila
| alakaʻi# | Launch | alakaʻi# | Launch |
| 1 | Kaumaha | 8 | GND |
| 2 | Kaumaha | 9 | GND |
| 3 | LD-(Hōʻewaʻewa) | 10 | NC |
| 4 | PD anode | 11 | GND(LD+) |
| 5 | PD cathode | 12 | RF MA |
| 6 | Mea hooluolu+ | 13 | GND(LD+) |
| 7 | mea hooluolu- | 14 | NC |

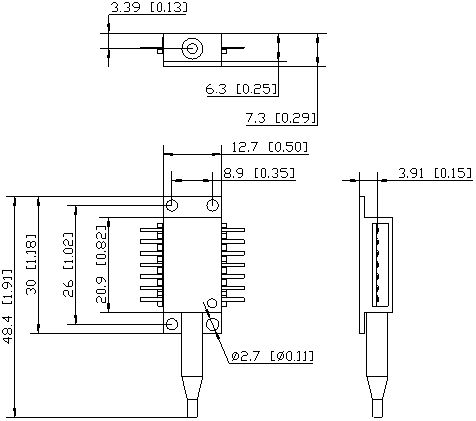

● Ana a me nā Pin ( Unit: mm[inihi] )
Hoʻohui RF: SMA
● Ke Kauoha ʻIke
Pepa 1:
| Code | Description |
| 55 | DWDM High Power 14PIN pūʻolo lele |
Pepa 2:
| Code | Mana Optical |
| 040 | 40mW |
| 050 | 50mW |
| 063 | 63mW |
| 100 | 100mW |
Pepa 3:
| Kanal | Ka pinepine (THz) | Loʻihi hawewe waena (nm) | Kanal | Ka pinepine (THz) | Loʻihi hawewe waena (nm) | |
| C01 | ʻO kēlā me kēia nalu maʻamau i makemake ʻia | C37 | 193.7 | 1547.72 | ||
| C02 | Non-ITU, 1547 nm – 1560 nm | C38 | 193.8 | 1546.92 | ||
| C03 | Non-ITU, 1557 nm – 1560 nm | C39 | 193.9 | 1546.12 | ||
| C04 | Non-ITU, 1530 nm – 1560 nm | C40 | 194 | 1545.32 | ||
| C15 | 191.5 | 1565.50 | C41 | 194.1 | 1544.53 | |
| C16 | 191.6 | 1564.68 | C42 | 194.2 | 1543.73 | |
| C17 | 191.7 | 1563.86 | C43 | 194.3 | 1542.94 | |
| C18 | 191.8 | 1563.05 | C44 | 194.4 | 1542.14 | |
| C19 | 191.9 | 1562.23 | C45 | 194.5 | 1541.35 | |
| C20 | 192 | 1561.41 | C46 | 194.6 | 1540.56 | |
| C21 | 192.1 | 1560.61 | C47 | 194.7 | 1539.77 | |
| C22 | 192.2 | 1559.79 | C48 | 194.8 | 1538.98 | |
| C23 | 192.3 | 1558.98 | C49 | 194.9 | 1538.19 | |
| C24 | 192.4 | 1558.17 | C50 | 195 | 1537.4 | |
| C25 | 192.5 | 1557.36 | C51 | 195.1 | 1536.61 | |
| C26 | 192.6 | 1556.55 | C52 | 195.2 | 1535.82 | |
| C27 | 192.7 | 1555.75 | C53 | 195.3 | 1535.04 | |
| C28 | 192.8 | 1554.94 | C54 | 195.4 | 1534.25 | |
| C29 | 192.9 | 1554.13 | C55 | 195.5 | 1533.47 | |
| C30 | 193 | 1553.33 | C56 | 195.6 | 1532.68 | |
| C31 | 193.1 | 1552.52 | C57 | 195.7 | 1531.9 | |
| C32 | 193.2 | 1551.72 | C58 | 195.8 | 1531.12 | |
| C33 | 193.3 | 1550.92 | C59 | 195.9 | 1530.33 | |
| C34 | 193.4 | 1550.12 | C60 | 196 | 1529.55 | |
| C35 | 193.5 | 1549.32 | C61 | 196.1 | 1528.77 | |
| C36 | 193.6 | 1548.51 | C62 | 196.2 | 1527.99 | |
Pepa 4:
| Code | Description |
| PM | PM-FC/APC fiber connector, 0.9mm, 1m ka lōʻihi |
● Hoʻomalu
ʻAʻole liʻiliʻi ma lalo o 20 mm ka radius bending fiber no ka pale ʻana i ka fiber i pōʻino.
E hōʻoia i ka maʻemaʻe o ka ʻaoʻao pili fiber ma mua o ka hoʻopili ʻana iā ia i ka opto-circuit.
Pono ka pale ESD kūpono i ka mālama ʻana, ka lawe ʻana a me ka hoʻohana ʻana.
noi
CATV
DWDM
Kūʻokoʻa Space Optical
ʻO ke kumu nui a me ka hāʻawi ʻana,
ʻO ka hoʻouna ʻana i ka hōʻailona ma nā Pūnaewele Optical
