LK-MAMPD-4 Multichannel High Speed Amplified Microwave Photodetector
- Kiʻekiʻe ，Wide Bandwidth
- Hoʻohui ʻia ʻo Bias-T
- ʻO/E Hybrid Integrated
- Loaʻa kiʻekiʻe, haʻahaʻa leo, Broadband
- Hoʻopaʻa Hermetically, Hoʻohui SMA
- Haʻahaʻa Pōʻeleʻele ， kiʻekiʻe hōʻailona-a-noise ratio.
- Kumu Liʻiliʻi.
Product Description
ʻO LK-MAMPD-4 kahi ʻōnaehana optoelectronic hybrid hou loa, e hoʻohui ana i kahi kiʻi kiʻi broadband Indium Gallium Arsenide (InGaAs) me kahi mea hoʻonui haʻahaʻa haʻahaʻa. Hōʻike ʻia kēia photodiode e kahi laulā hawewe pane spectral mai 1000 a 1650 nanometers. Hāʻawi ka mea hoʻonui haʻahaʻa haʻahaʻa i loko o ka ʻōnaehana i ka loaʻa ʻana o Radio Frequency (RF) o 15 decibels, e hōʻoiaʻiʻo ana i ka pololei a me ka hoʻonui ʻana.
Hiki iā LK-MAMPD-4 ke hāʻawi i nā bandwidths o 12 gigahertz a me 18 gigahertz, e mālama ana i nā ʻano like ʻole o ka kamaʻilio wikiwiki a me nā koi ʻike. Hoʻolālā ʻia ka module e hana ma kahi + 5-volt supply voltage, kahi maʻamau i nā ʻōnaehana uila he nui. He kūpono ia me ka maʻamau maʻamau 9/125-micrometer optical fibers, e hōʻoiaʻiʻo ana i ka hoʻohui pono ʻana me nā pūnaewele fiber optic i loaʻa. Hōʻike ka RF output port i kahi mea hoʻohui SMP-compatible, ʻo ia ka impedance-matched me 50 ohms no ka hoʻouna ʻana i ka hōʻailona maikaʻi loa a me ka nalowale o ka hōʻailona liʻiliʻi.
Ua kūkulu ʻia ʻo LK-MAMPD-4 me kahi kaʻina hana hermetic sealing, e hāʻawi ana i ka pale paʻa i nā kumu kūlohelohe, hoʻonui i kona kūpaʻa a me ka hilinaʻi. Loaʻa iā ia kahi ʻano kikoʻī kikoʻī, ke kaupaona ʻana ma lalo o 62 grams, he mea maikaʻi ia no nā noi kahi e noʻonoʻo ai ke kaumaha. Ua hōʻoia ʻia ka module e hoʻokō me ka Restriction of Hazardous Substances (RoHS) Directive 2.0, e hōʻoia ana i kona pili ʻana i nā kūlana kūlohelohe a me ka palekana.
Nā Kūlana Kiʻi
| Kūlana Kiʻekiʻe Kiʻekiʻe | ||||
|---|---|---|---|---|
| aiao | ʻO Sym | Kāne | Rating | Mokuna |
| Laulā mahana mālama | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Lahi wela o ka pahu hana | TC | 25 | -40 ～ +85 | ℃ |
| Voltage Bias | VR | +5 | +5 ～ +9 | V |
| Mana Hookomo Optical | Pin | 0 | 10 + | dBm |
| ʻO ka mana Optical Burn-out | PB | - | 13 + | dBm |
| Ka wela hoʻoheheʻe alakaʻi | Tp | 280（10s） | 330（10s） | ℃ |
| ʻAno Uila / Optical (TC = 22 ± 3 ℃ ) | ||||||
|---|---|---|---|---|---|---|
| aiao | ʻO Sym | ʻAno Hoʻokolohua | Nā Waiwai Kūlana | Mokuna | ||
| Laulā hawewe | λ | - | 1000 ~ 1650 | nm | ||
| Laulā Frequency | - | - | X - Bana | Ku - Band | - | |
| ʻO ka Bandwidth hōʻailona liʻiliʻi | f-3dB | TC = 22 ± 3 ℃ | 0.3 ~ 12 | 2 ~ 18 | GHz | |
| ʻIvitylelo pane | Re | VR =+5V, Pin =10mW | λ = 1310 nm | ≥ 0.8 | ≥ 0.85 | A / W |
| λ = 1550 nm | ≥ 0.85 | ≥ 0.8 | ||||
| Amplitude Flatness | A | TC =-45～+85 ℃ | ≤ ± 2 | dB | ||
| Ka Mana Optical Saturation | Ps | VR =+ 5 V, λ = 1550 nm AC Modulated |
10 | dBm | ||
| Loaʻa ka hōʻailona RF (Maʻamau) | G | - | 15 ± 1 | dB | ||
| Saturation RF Puka Mana | Paku | - | +3 | dBm | ||
| Huakaʻi VSWR | ʻO VSWR | - | ≤ 2 | - | ||
| Hoʻonui i ka hopena | RL | - | 50 | Ω | ||
● Nā ʻĀpana pane maʻamau

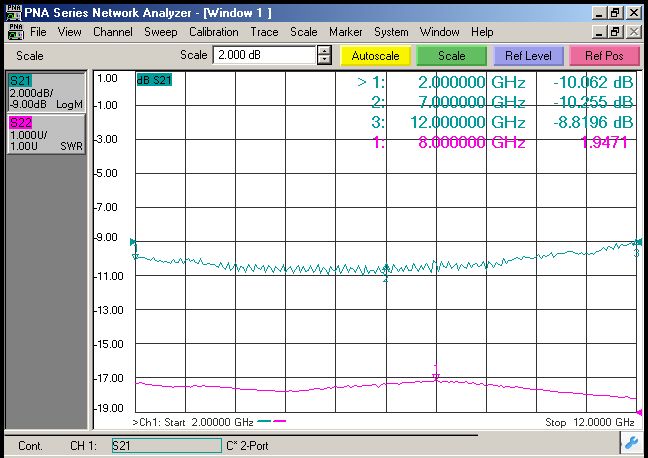

（ Fig. 1 X - Pānaʻi Alapine Paʻi kiʻi kiʻi pū)
（ Fig. 2 Ku - Pānaʻi Lapaʻau kiʻi kiʻi kiʻi kiʻi kiʻi Band）
● Ana a me nā Pin ( Unit: mm[inihi] )
Hoʻohui RF: SMP
● Ke Kauoha ʻIke
Pepa 1:
| Code | Analog Bandwidth |
| X | 0.2 ~ 12 GHz |
| Ku | 2 ~ 18 GHz |
Pepa 2:
| Code | hūliliʻAno | hoʻopuka |
| N | ʻAʻohe mea hoʻohui | Hoʻokahi-mode 9 / 125 μm fiber pigtail |
| A | FC / APC | |
| P | FC / PC |
● Hoʻomalu
ʻAʻole liʻiliʻi ma lalo o 20 mm ka radius bending fiber no ka pale ʻana i ka fiber i pōʻino.
E hōʻoia i ka maʻemaʻe o ka ʻaoʻao pili fiber ma mua o ka hoʻopili ʻana iā ia i ka opto-circuit.
Pono ka pale ESD kūpono i ka mālama ʻana, ka lawe ʻana a me ka hoʻohana ʻana.
Hiki ke hoʻopilikino ʻia kā mākou mau photodetectors maʻamau i loko o nā modula！
noi
Hoʻoponopono ʻike Radar
Ke kaua uila
Ana Antenna
Nā Kūkākūkā Fiber Optic
Ka palekana a me ka nānā
