LK-NY55T Mana Kiekie DWDM Transmitter
- A hiki i ka 100mw mana kiʻekiʻe
- Haʻahaʻa haʻahaʻa haʻahaʻa hoʻoikaika kino walaʻau (RIN)
- Kiʻekiʻe hoʻohui ʻia, module packaging
- ʻO ke kūlana kiʻekiʻe
- Ka lōʻihi nalu ITU koho
Product Description
ʻO LK-NY55T Transmitter ka mea i kūkulu mua ʻia me ka mana kiʻekiʻe i hāʻawi ʻia i ka manaʻo manaʻo (DFB) laser, i hoʻokō ʻia e ka mana kaapuni mana otometi, kaapuni hoʻomalu wela maʻemaʻe, kaapuni hoʻololi hoʻololi ʻana i ka uila, ka nānā ʻana a me ka kaapuni hōʻike. Hoʻolālā ʻia ka hāmeʻa e hoʻolōʻihi i ka papa ʻaina hawewe ITU no nā noi Dense Wavelength Division Multiplexing (DWDM), e hōʻoia ana i ka hoʻohālikelike ākea ākea.
Hiki iā ia ke hoʻokō i ka mana kiʻekiʻe loa o 100mW me ka mālama ʻana i ka haʻahaʻa haʻahaʻa haʻahaʻa haʻahaʻa, hōʻike pū ka module i ke kūpaʻa maikaʻi loa i kona lōʻihi hawewe puka, kahi ʻāpana koʻikoʻi no ka kamaʻilio optical hilinaʻi. Eia kekahi, ua lako ʻia ʻo LK-NY55T Transmitter me kahi hana hōʻailona e hōʻailona ai i ka hana maʻamau o ka lako mana a me ka mana o ka mana.
Nā Kūlana Kiʻi
Nā papa kuhikuhi kiʻekiʻe kūloko
| aiao | hōʻailona | Min. | ʻAno | Max. | Mokuna |
| papaa mehana | TSTG | -40 | 25 + | 85 + | ℃ |
| hana mehana | TC | -20 | 25 + | 70 + | ℃ |
| anakahi uila | Vin | +7 | 12 + | 36 + | V |
Hōʻike ʻike a me ka uila (TC = 22±3 ℃)
| aiao | hōʻailona | ano | Min. | ʻAno | Max. | Mokuna |
| ke kōā | λ | - | - | C Bana | - | nm |
| Mana puka māmā | P | - | 40 | - | 100 | mW |
| Noise Intensity Noise | rhine | - | - | -163 | -160 | dBc/Hz |
| Lakiō kaohi ʻaoʻao ʻaoʻao | SMSR | - | 30 | - | - | dB |
| Holo ka nalu ma luna o ka pae TC | ∆λTOP | T = TOP | - | - | 50 | pm |
Mea Mana Mana (TC = 22±3 ℃)
| aiao | Min. | ʻAno | Max. | Mokuna |
| anakahi uila | +7 | 12 + | 36 + | V |
| o kēia(1) | 0.3 | 0.6 | 1 | A |
(1) Kūlana hoʻāʻo: Vin=+12V.
● Spectrogram maʻamau
Kiʻi 1 LK-NY55T Transmitter Typical Spectrogram
● Huina Ana:mm[inihi]

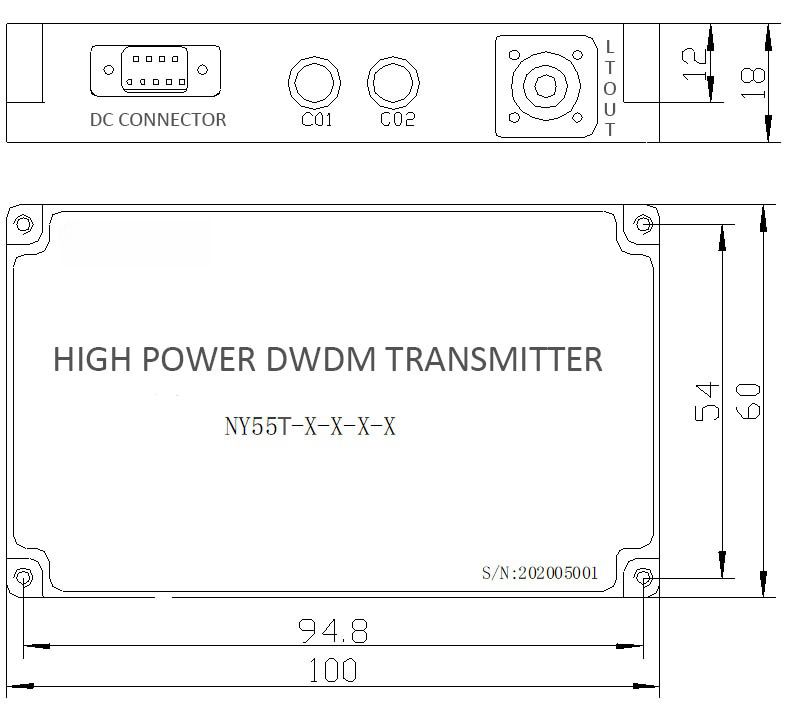

Kiʻi 2 LK-NY55T ʻĀpana Transmitter
Hoʻohui RF: SMA
Mea hoʻohui mana:J30J-9-ZKP
● Pin o ka mana lako
| aiao | Description | ||||||||
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| anakahi uila | waina | NC | GND | NC | |||||
● ʻIke Kauoha
Pepa 1:
| Code | Mana opi |
| 040 | 40mW |
| 050 | 50mW |
| 063 | 63mW |
| 100 | 100mW |
Pepa 2:
| Code | ke kōā |
| 1 | 1550nm |
| 2 | Hana ʻia（ITU） |
Pepa 3:
| Code | ʻAno puluniu |
| PM1 | pulu panda |
| PM2 | ʻAla Elliptical |
Pepa 4:
| Code | Mea hoʻohui Optical |
| CM | i hoʻopilikino ' |
| A | FC / APC |
